Work 7.2 (Iseliikuv auto)

Описание

Iseliikuv auto, mis tõrjub oma teel olevaid takistusi.

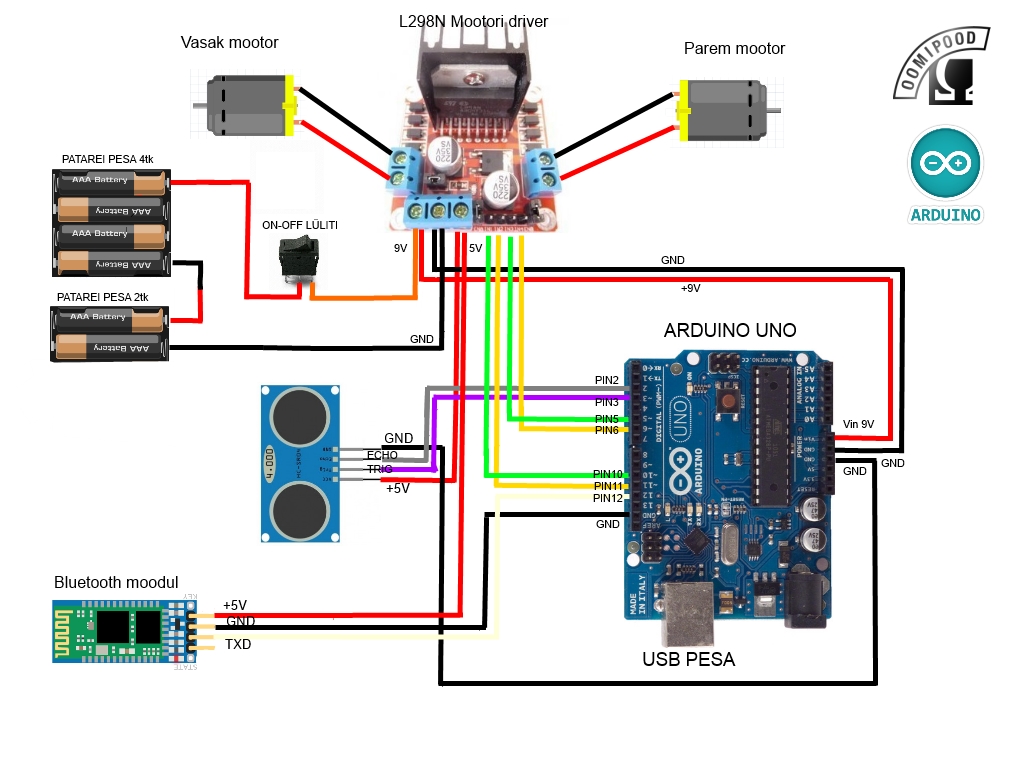

Pange kokku robot vastavalt antud skeemile või koosta enda skeem.
Kasuta all antud koodi või kirjuta ise.

Использованые компоненты

http://data.oomipood.ee/arduino/robi_v1_0/detailide_nimekiri.odt

Код программы

ROBI/robi_v1_0_only_auto/robi_v1_0_only_auto.ino at master · Oomipood/ROBI (github.com)

//Robi v1.0

// Control of 2WD-1 robot platform using Arduino UNO.
// with obstacle avoidance using HC-SR04 ultra sonic sensor.


//SOFTWARE SERIAL FOR BLUETOOTH VARIABLES
//#include <SoftwareSerial.h>
//SoftwareSerial bluetoothSerial(12, 2); // RX, TX
//char bluetoothCommand;

//DISTANCE VARIABLES
const int trigPin = 3;
const int echoPin = 2;
int dist_check1, dist_check2, dist_check3;
long duration, distance, distance_all;
int dist_result;

//MOTORS VARIABLES
const int mot1f = 6;
const int mot1b = 5;
const int mot2f = 11;
const int mot2b = 10;
int mot_speed = 225; //motors speed
int k = 0; //BRAKE

//LOGICS VARIABLES
const int dist_stop = 25;
//const int dist_slow = 40;
const int max_range = 800;
const int min_range = 0;
int errorLED = 13;

//INITIALIZATION
void setup() {
//  Serial.begin(9600);
//  bluetoothSerial.begin(9600);
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  pinMode(errorLED, OUTPUT);
}

//BASIC PROGRAM CYCLE
void loop() {

  delay(1000);
  goto start;


start:
int result = ping();    //Check distance
  if (result <= min_range){                  //Check min range
    digitalWrite(errorLED, 1);
    delay(500);
  }
  if (result == max_range || result > max_range){  //Check max range
    digitalWrite(errorLED, 1);
    delay(500);
  }
  if (result == dist_stop || result < dist_stop){  //Check stop range
    digitalWrite(errorLED, 0);
    motors_back();
    delay(1000);
    motors_stop();
    delay(200);
    motors_left();
    delay(300);
    motors_stop();
    delay(200);
  }
  if (result > dist_stop){          //If all is OK, go forward
    motors_forward();
    delay(100);
 }
goto start;
}

////***********************FUNCTIONS*******************************\\\\

int ping(){                      //CHECK DISTANCE FUNCTION (3x)
  digitalWrite(trigPin, 0);
  delayMicroseconds(2);
  digitalWrite(trigPin, 1);
  delayMicroseconds(10);
  digitalWrite(trigPin, 0);
  duration = pulseIn(echoPin, 1);
  distance = duration/58;

  dist_check1 = distance;

  digitalWrite(trigPin, 0);
  delayMicroseconds(2);
  digitalWrite(trigPin, 1);
  delayMicroseconds(10);
  digitalWrite(trigPin, 0);
  duration = pulseIn(echoPin, 1);
  distance = duration/58;

  dist_check2 = distance;

  digitalWrite(trigPin, 0);
  delayMicroseconds(2);
  digitalWrite(trigPin, 1);
  delayMicroseconds(10);
  digitalWrite(trigPin, 0);
  duration = pulseIn(echoPin, 1);
  distance = duration/58;

  dist_check3 = distance;

  int dist_check_sum;
  dist_check_sum = dist_check1 + dist_check2 + dist_check3;
  dist_result = dist_check_sum/3;
  return dist_result;
}

void motors_forward(){                    //MOTORS FORWARD FUNCTION
  analogWrite(mot1f, mot_speed);
  analogWrite(mot2f, mot_speed);
  digitalWrite(mot1b, 0);
  digitalWrite(mot2b, 0);
}
void motors_back(){                      //MOTORS BACK FUNCTION
  digitalWrite(mot1f, 0);
  digitalWrite(mot2f, 0);
  analogWrite(mot1b, mot_speed);
  analogWrite(mot2b, mot_speed);
}
void motors_stop() {                      //MOTORS STOP FUNCTION
  digitalWrite(mot1f, 1);
  digitalWrite(mot2f, 1);
  digitalWrite(mot1b, 1);
  digitalWrite(mot2b, 1);
}
void motors_left() {                     //MOTORS LEFT FUNCTION
  analogWrite(mot1f, mot_speed);
  digitalWrite(mot2f, 0);
  digitalWrite(mot1b, 0);
  analogWrite(mot2b, mot_speed);
}
void motors_right() {                    //MOTORS RIGHT FUNCTION
  digitalWrite(mot1f, 0);
  analogWrite(mot2f, mot_speed);
  analogWrite(mot1b, mot_speed);
  digitalWrite(mot2b, 0);
}
void motors_foward_left() {             //FORWARD LEFT FUNCTION
k = mot_speed*0.8;
  analogWrite(mot1f, mot_speed);
  analogWrite(mot2f, k);
  digitalWrite(mot1b, 0);
  digitalWrite(mot2b, 0);
}
void motors_foward_right() {             //FORWARD RIGHT FUNCTION
k = mot_speed*0.8;
  analogWrite(mot1f, k);
  analogWrite(mot2f, mot_speed);
  analogWrite(mot1b, 0);
  analogWrite(mot2b, 0);
}
void motors_back_left() {               //BACK LEFT FUNCTION
k = mot_speed*0.8;
  digitalWrite(mot1f, 0);
  digitalWrite(mot2f, 0);
  analogWrite(mot1b, k);
  analogWrite(mot2b, mot_speed);
}
void motors_back_right() {               //BACK RIGHT FUNCTION
k = mot_speed*0.8;
  digitalWrite(mot1f, 0);
  digitalWrite(mot2f, 0);
  analogWrite(mot1b, mot_speed);
  analogWrite(mot2b, k);
}
